6 Enable SSL – Install SSL Certificate

Note

Assuming that you have already setup your DNS to point to a DNS name connected to the Triofox server and SSL certificate already purchased for the DNS name. If not, you can acquire a SSL certificate from your SSL vendor.

We recommend using https://www.ssllabs.com/ to test your SSL setup because the SSL Labs site will produce a report on whether the SSL is compatible with all devices such as iOS devices.

You can also use openssl to check the SSL certificates and whether or not the whole certificate trust chain is completely installed on the server side.

openssl s_client -connect server.yourwebhoster.com:443

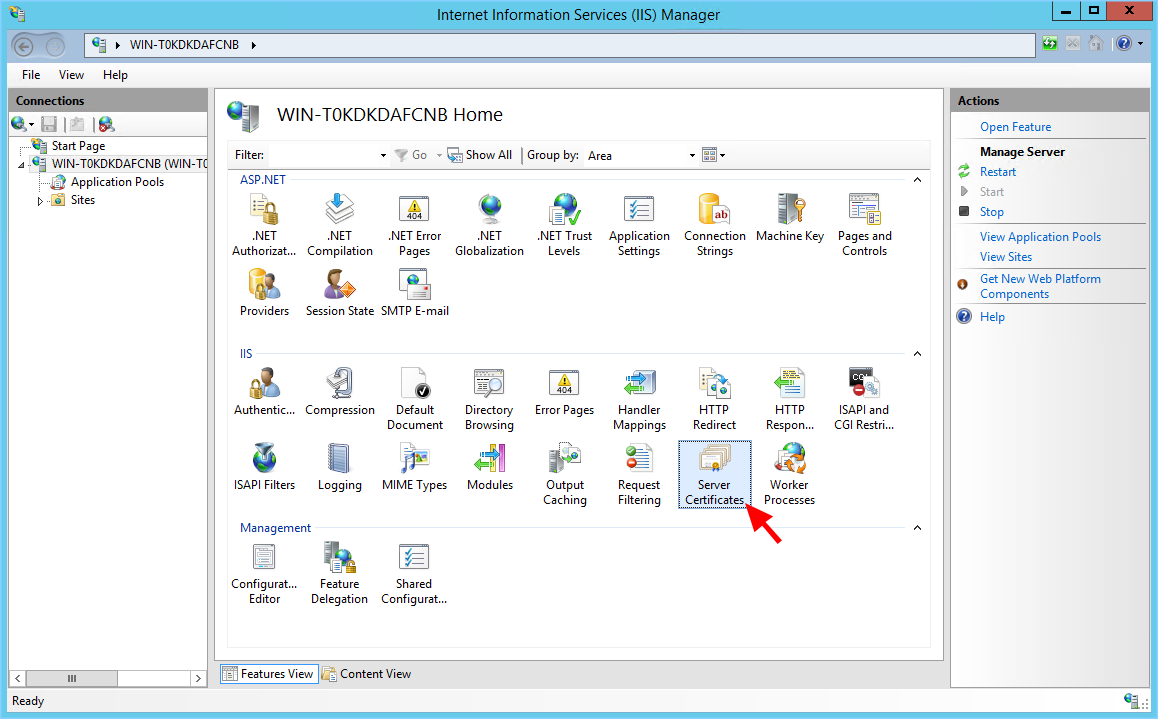

You will install the SSL certificate by using the IIS Manager. Look for “Server Certificates” and double click on it.

_images/image_s6_1_1.png

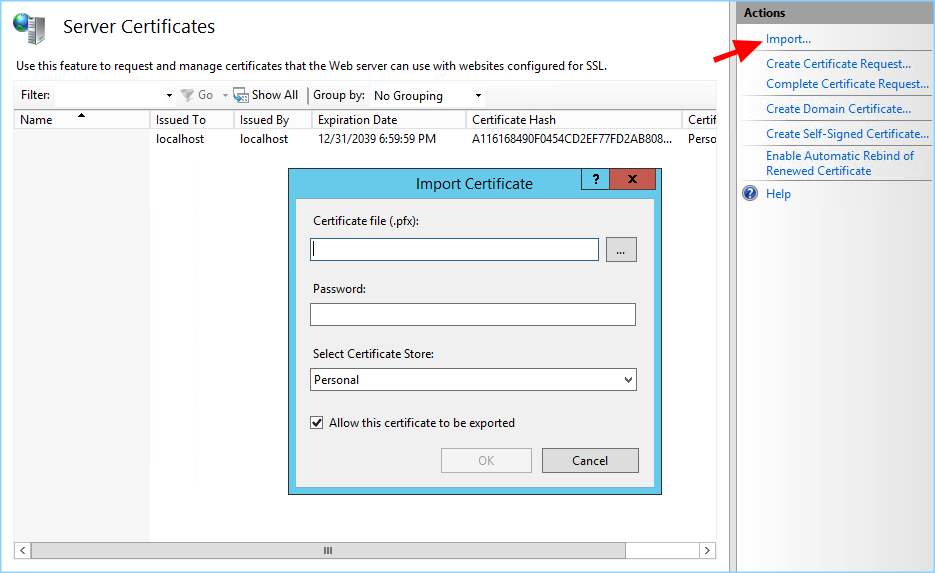

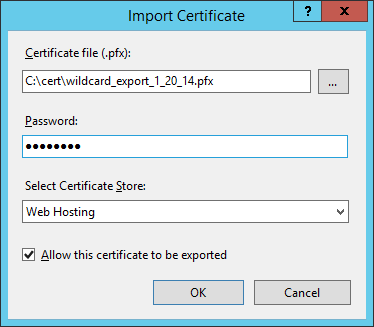

Click on “Import” to import an existing SSL Certificate. Leave the Certificate Store as “Personal” or “Web Hosting”, either way is fine.

_images/image_s6_1_2.png _images/image026.png

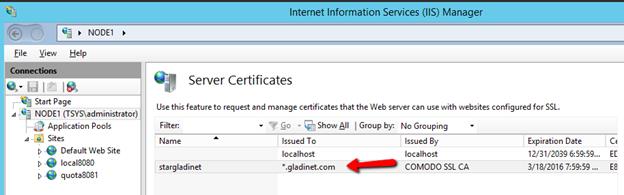

Verify that the certificate is available:

_images/image027.jpg

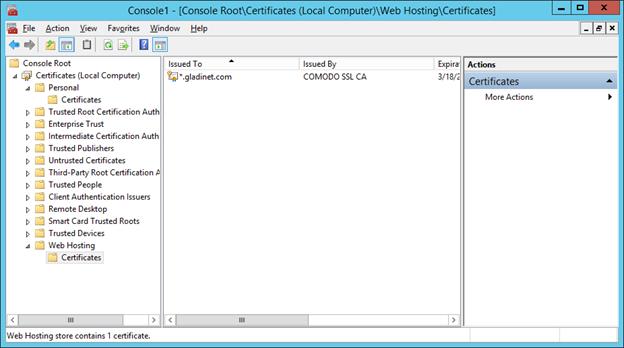

You can also verify the SSL certificate from the MMC/Certificates snap-in (Local Computer).

_images/image028.jpg

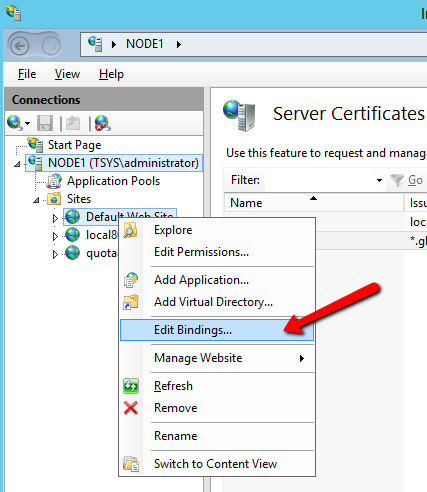

Now you can bind the “Default Web Site” to the SSL certificate for HTTPS. Right click on the “Default Web Site” and select “Edit Binding”.

_images/image029.png

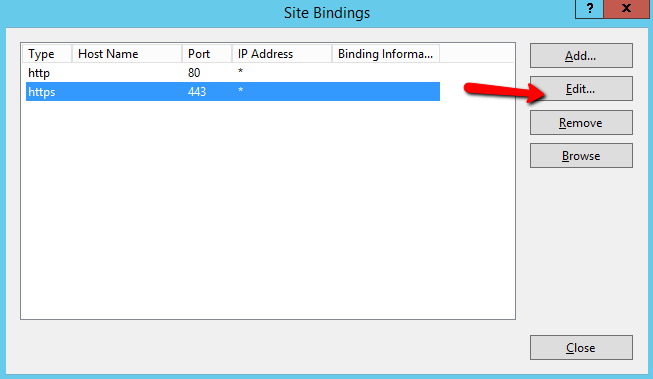

At the binding dialog, edit the HTTPS binding.

_images/image030.png

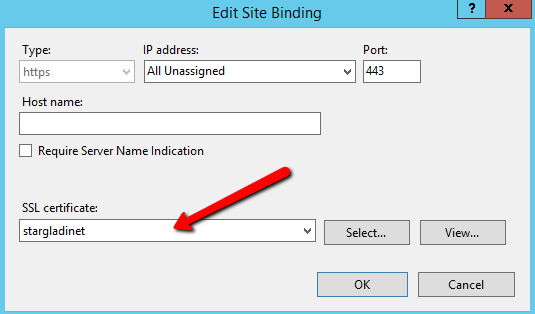

Now, change the SSL Certificate binding drop-down to the imported SSL certificate.

_images/image031.png
